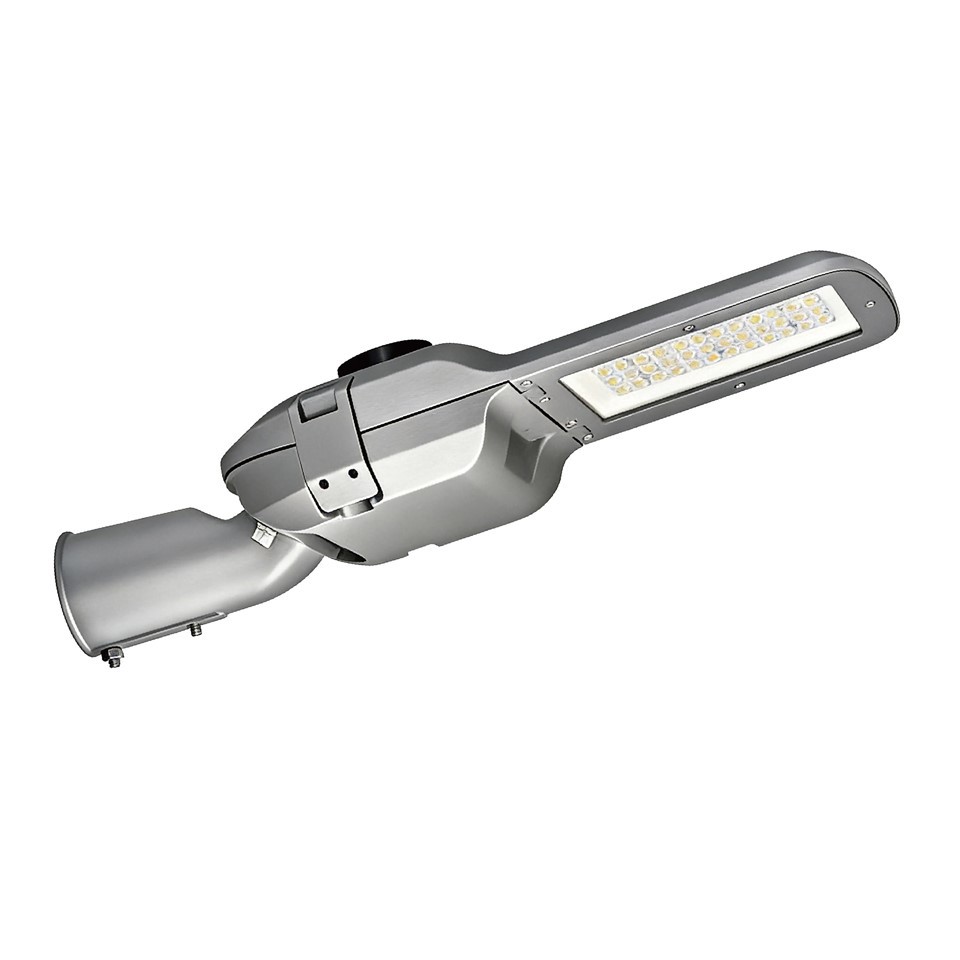

Tag nrho cov qauv ntawm 30W ntse nroog LED teeb pom kev zoo txais kev sib cais tsim. Cov kab uas ruaj khov yog txuas nrog lub teeb ci ntsa iab, tsim kom muaj qhov sib npaug ntawm cov neeg kho tshuab. Qhov kawg ntawm lub teeb caj npab yog lub teeb duab plaub-emitting panels, thiab sab saum toj yuav integrate sensors los yog anti- glare npog. matte grey nto kev kho mob sib xyaw ua ke corrosion kuj thiab niaj hnub. Lub teeb lub cev tsis muaj redundant decorations, conforming rau minimalist industrial zoo nkauj. Ntawm qhov chaw sib txuas ntawm 30W lub nroog ntse LED teeb lub caj npab thiab sab, muaj qhov zais qhov thaiv, thiab cov khoom sab saum toj yog lub teeb -sensing probes.
Functional Features
Lub teeb Source Technology
Siv siab -xim- ua rau LED modules (nrog CRI> 70), thiab xim kub tuaj yeem xaiv tau li 4000K, 5000K, lossis 5700K.
Intelligent Control
Txhawb dimming thiab tuaj yeem nruab nrog microwave radar txhawm rau txheeb xyuas cov tsheb khiav.
Muaj peev xwm tiv thaiv
IP65 los yog siab dua tiv thaiv qib, haum rau huab cua hnyav.

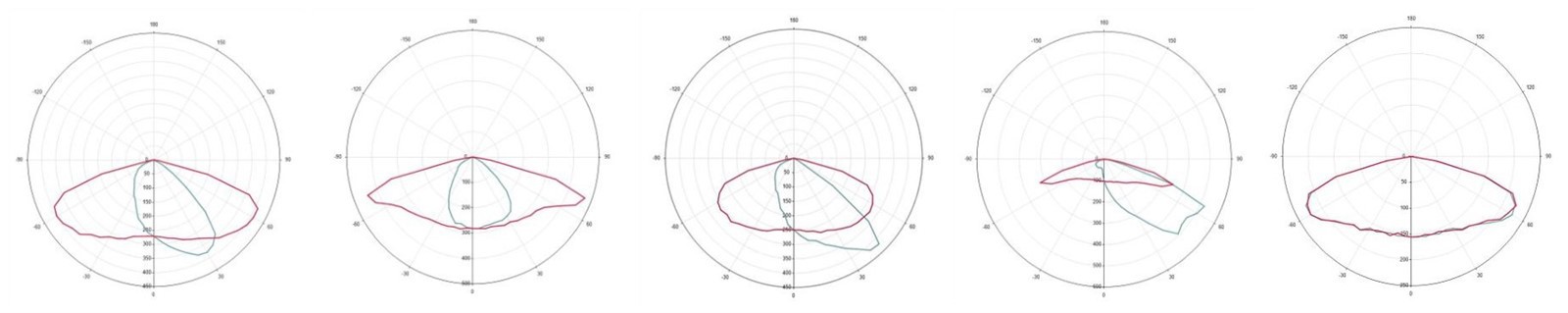

Lub kaum ntse ntse: T2 / T3 / T4 / T5
Installation Structure
Tail flange hom installation
Lub teeb lub cev tuaj yeem tig ± 15 degree
Daim ntawv thov Scenario
Txoj kev loj teeb pom kev zoo
Industrial Park
Tunnel nkag mus rau seem
Cim npe nrov: 30w ntse nroog coj teeb pom kev zoo, Tuam Tshoj 30w ntse nroog coj teeb pom kev zoo manufacturers, lwm tus neeg, Hoobkas
Technical Specifications
|
Qauv |
ST 340B 30 W |
ST 340B40 W |
ST340B50W |
ST 340B60 W |
ST 340B75 W |
|
|
Hluav taws xob |
POWER (>90%) |
30w |
40w |
50w |
60W |
75W |
|
RATED VOLT. |
90-305V 50/60Hz |
90-305V 50/60Hz |
90-305V 50/60Hz |
90-305V 50/60Hz |
90-305V 50/60Hz |
|
|
Ua haujlwm VOLT. |
100-277V AC |
100-277V AC |
100-277V AC |
100-277V AC |
100-277V AC |
|
|
Hwj chim FACTOR (@220V) |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
|
DIMMABLE |
0-10V (DALI xaiv) |
0-10V (DALI xaiv) |
0-10V (DALI xaiv) |
0-10V (DALI xaiv) |
0-10V (DALI xaiv) |
|
|
PROTECT CLASS |
Chav kawm I |
Chav kawm I |
Chav kawm I |
Chav kawm I |
Chav kawm I |
|
|
TUS NEEG SPD |
10KV (20KV xaiv) |
10KV (20KV xaiv) |
10KV (20KV xaiv) |
10KV (20KV xaiv) |
10KV (20KV xaiv) |
|
|
TSEEM CEEB |
SYSTEM EFFICIENCY (typ.) |
150 ~ 170 hli / W |
150 ~ 170 hli / W |
150 ~ 170 hli / W |
150 ~ 170 hli / W |
150 ~ 170 hli / W |
|
CRI (Ra) |
>70r ua |
>70r ua |
>70r ua |
>70r ua |
>70r ua |
|
|
CCT |
4000/5000K/5700K |
4000/5000K/5700K |
4000/5000K/5700K |
4000/5000K/5700K |
4000/5000K/5700K |
|
|
OPTICAL |
COVER |
Tempered iav |
Tempered iav |
Tempered iav |
Tempered iav |
Tempered iav |
|
OPTICAL |
LED Lens 50 * 50 |
LED Lens 50 * 50 |
LED Lens 50 * 50 |
LED Lens 50 * 50 |
LED Lens 50 * 50 |
|
|
Cov khoom siv kho qhov muag |
PC |
PC |
PC |
PC |
PC |
|
|
BEAM ANGLE |
HOM II / HOM III |
HOM II / HOM III |
HOM II / HOM III |
HOM II / HOM III |
HOM II / HOM III |
|
|
MECHANICAL |
BRACKET |
/ |
/ |
/ |
/ |
/ |
|
MODULES |
/ |
/ |
/ |
/ |
/ |
|
|
Khoom siv |
Tuag cam khwb cia txhuas ADC-12 |
Tuag cam khwb cia txhuas ADC-12 |
Tuag cam khwb cia txhuas ADC-12 |
Tuag cam khwb cia txhuas ADC-12 |
Tuag cam khwb cia txhuas ADC-12 |
|
|
MOUNTING POLE SIJE |
Sab nkag Ø60 |
Sab nkag Ø60 |
Sab nkag Ø60 |
Sab nkag Ø60 |
Sab nkag Ø60 |
|
|
INPU WIRE |
3 * 1mm2 roj hmab xaim, 30cm tso zis |
3 * 1mm2 roj hmab xaim, 30cm tso zis |
3 * 1mm2 roj hmab xaim, 30cm tso zis |
3 * 1mm2 roj hmab xaim, 30cm tso zis |
3 * 1mm2 roj hmab xaim, 30cm tso zis |
|
|
AC CUT-OFF SWITCH |
YOG |
YOG |
YOG |
YOG |
YOG |
|
|
NEMA / ZHAGA BASE |
Kev xaiv |
Kev xaiv |
Kev xaiv |
Kev xaiv |
Kev xaiv |
|
|
IB RATE |
ib 08 |
ib 08 |
ib 08 |
ib 08 |
ib 08 |
|
|
IP CLASS |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
|
Lwm tus |
Ua hauj lwm TEM. |
-20 - +50 degree |
-20 - +50 degree |
-20 - +50 degree |
-20 - +50 degree |
-20 - +50 degree |
|
STORAGE TEMP. |
-40 - +70 degree |
-40 - +70 degree |
-40 - +70 degree |
-40 - +70 degree |
-40 - +70 degree |
|
|
LUB SIJ HAWM |
>50000 hnub |
>50000 hnub |
>50000 hnub |
>50000 hnub |
>50000 hnub |
|
|
LIMITED Warranty |
5 -xyoo |
5 -xyoo |
5 -xyoo |
5 -xyoo |
5 -xyoo |
|
